What is a Three Phase Energy Meter?
A three phase energy meter plays a vital role in measuring the total power consumed across a three-phase supply. This meter is smartly constructed by connecting two single-phase meter units through a shaft, ensuring smooth operation and accuracy. The reading from both elements gives the sum of energy used, making the three-phase meter a practical choice for tracking comprehensive energy supply in large-scale systems.
Working Principle of the Three Phase Energy Meter
The torque from both elements is added mechanically, making the rotation of the shaft directly proportional to the total energy consumption in a three-phase setup. This simple principle ensures accurate monitoring in real-world applications.
Read more: SPDT Switch
Function of Three Phase Energy Meter
The function of a three-phase meter is to accurately track the energy consumed in a three-phase system. It works by measuring the consumption of each phase separately, then calculating the total amount of electricity used. This is usually expressed in kilowatt-hours (kWh), and the readings are used to determine how much energy is billed to subscribers or consumers.
Read more: Casing and Capping Wiring
Basic Functions of the Three Phase Energy Meter
The main task of a three-phase meter is to measure energy consumption in each phase and calculate the total usage. This helps users receive an accurate energy bill based on their actual consumption.
In three-phase systems, one essential function is measuring the power factor to evaluate efficiency. A strong power factor ensures the system runs smoothly, which is especially important in high-demand setups.
Some three-phase meters come with models that can detect overload situations and warn the systems in time. This feature helps prevent problems that may arise due to unexpected load spikes.
In my experience with modern setups, three-phase meter models also record and transmit measured data. These meters are integrated into remote monitoring and management systems for better energy control.
Read more: How to test a capacitor

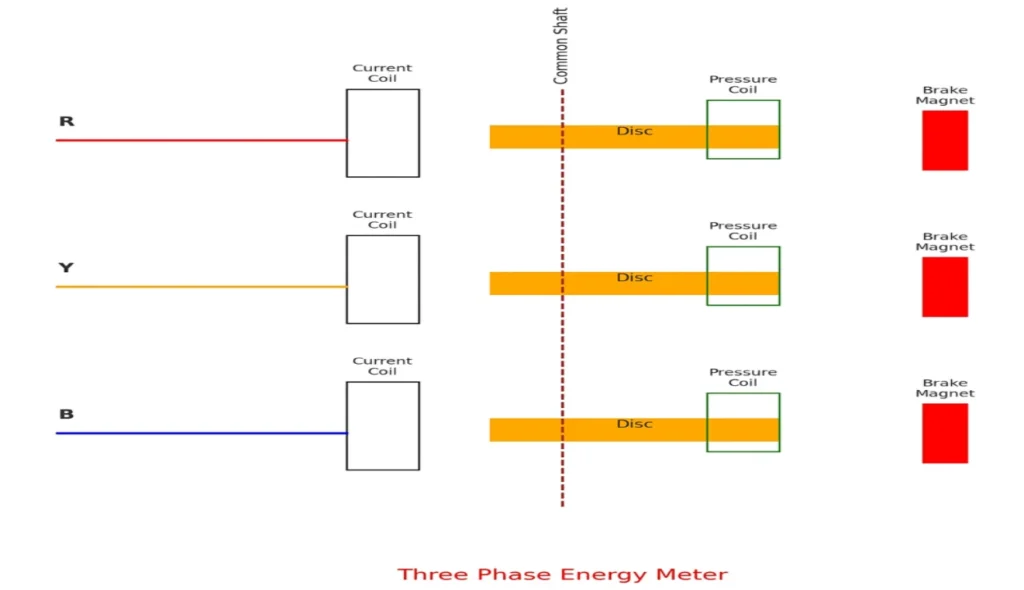

Construction of Three-Phase Energy Meter
A three phase energy meter has two discs mounted on a common shaft, each with a braking magnet, copper ring, and shading band. The compensator ensures a correct reading while the elements work together for the accurate measurement of three-phase power. These components help maintain precision in energy measurement.
The three-phase meter operates by passing full load current through current coils arranged in series and potential coils in parallel. The driving torque is equal in both elements, but if an opposite torque arises, fine adjusting ensures proper balance. This method keeps the meter functioning efficiently.
Before testing, the torque must be adjusted to achieve balanced torque, preventing unnecessary disc rotation movement. If the torque becomes unequal, the magnetic shunt is modified, and the positions of the compensator and braking magnet are set separately. This process ensures long-term stability and reliable readings.
Single-phase vs. three phase energy meters
A single-phase meter uses a single conductor, while a three-phase meter uses three-phase wires and a neutral wire for electric transmission and a complete circuit.
The upper limit of voltage in a single-phase meter system is 230 volts, whereas a three-phase system can handle up to 415 volts.
Single-phase power meters typically work with two wires, creating a simple network, while three-phase meters use four wires and different wires, making the network more complicated.
If one phase fails in a three-phase meter, the other phases compensate, reducing the chances of power interruption, unlike a single-phase power meter.
Three-phase meters handle electrical energy more efficiently with separate conductors, while single-phase power meters are less efficient and need separate wires for a smooth electricity flow.
Three-phase connections require fewer conductors, making the system more efficient and reducing energy loss compared to the former single-phase electric meter setup.
The super-powerful Genus Meter helps consumers measure electricity accurately and plan effective ways to save on electricity bills, especially in large setups using a three-phase connection.
Advantages of Three Phase Energy Meter
Three-phase systems are preferred in large industrial facilities and commercial areas due to their high power capacity, making them more reliable than single-phase systems.
They provide balanced energy distribution, ensuring stable energy flow, which prevents fluctuations in the power supply.
Three-phase meters improve productivity by accurately measuring energy consumption, allowing for better management of power usage.
These meters are ideal for handling high-energy demands in industrial facilities, ensuring continuous operation without overload issues.
Used widely in industrial settings, three-phase systems help with efficient energy allocation, making them a smart choice for large-scale applications.
Conclusion
A three phase energy meter efficiently tracks electricity use. It is reliable and ideal for industrial and commercial settings. These places need high power and balanced energy distribution. It has better productivity than a single-phase meter. It also ensures accurate measurements and needs fewer conductors. This leads to smoother operations and fewer power interruptions. It has features like data recording and overload detection. It also works with remote monitoring systems. This ensures effective energy management. Whether for consumers or large-scale facilities, a three-phase meter proves to be a smarter, more efficient choice for today’s evolving energy needs.
