What is direct current?

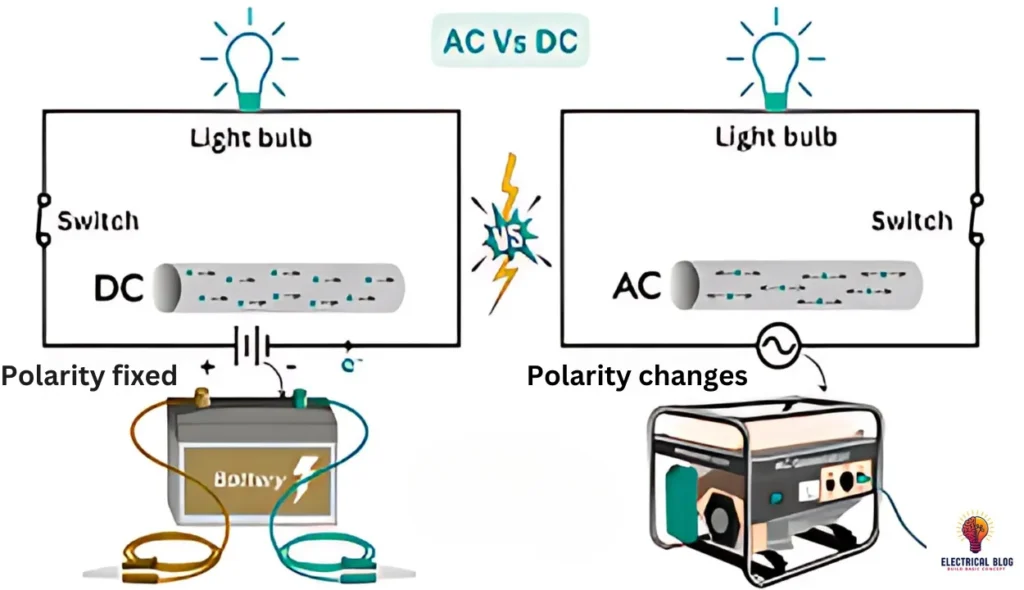

Direct current is a one-directional movement of electric charge, making it different from AC. It moves consistently through a conductor like a wire or even through a vacuum, carrying energy efficiently. Many electrochemical processes, such as smelting aluminum, rely on large amounts of power from DC sources.
Devices like batteries and power supplies generate direct current, which is crucial for motors and other systems. High-power transmission from remote generation sites often uses high-voltage direct current to interconnect with alternating current power grids. Conversion between AC and DC happens using a rectifier or an inverter for a smooth flow of electricity. You can also read DC Voltage.
Evolution of Direct Current
In 1800, Alessandro Volta created a battery that first produced electricity, but the way current moved was still unknown. Later, in 1832, a generator was built, but it produced alternating current until a commutator was added to make it direct. Scientists like Ampère studied direction and made suggestions to improve power flow.
By the 1870s, cities started using arc lighting for street lighting, powered by high voltage from early power stations. In 1882, Thomas Edison introduced incandescent bulbs, supplying homes and businesses with direct power. However, alternating current systems started to replace direct current because they could raise and lower voltage over long distances.
In the 1950s, high-voltage direct current was developed to improve power delivery. It became the best option for undersea cables, such as NorNed, and third rail power systems. Today, substations use a rectifier to convert alternating current to direct current, ensuring efficient distribution of power through systems and contacts.
Other definitions of direct current.
Direct current is known for its constant flow of electricity, unlike alternating current. It maintains a stationary voltage, with a DC component that remains steady over time. In some cases, a time-varying component is present, but the average value of voltage or current remains unchanged.
A direct current source produces power with fixed electrical polarity, making it essential for power systems. Devices like a voltage regulator help control variations in output power, ensuring a stable energy supply. Even in communication, a telephone line carries a fluctuating voice signal, yet its local mean value follows a predictable waveform. You can also read DC motors.
How DC circuits work
A DC circuit is a closed path where charges flow in one direction. It consists of voltage sources, current sources, and resistors that maintain a constant supply of power. If the circuit becomes disconnected, the charges stop moving, and the system no longer works.
A battery or power supply provides energy to the load, which has a positive terminal and a negative terminal. The circuit voltages remain steady state, meaning they do not change over time. However, in some cases, the circuit may have a transient response before reaching stability.
Adding a capacitor or inductor to a DC circuit introduces complexity, often requiring differential equations to analyze its behavior. Unlike simple circuits, these elements store energy, affecting the DC solution. Their behavior is different from the past values of the circuit, making the system more independent.
In certain applications, polarity must be correct, or the circuit may not function properly. Some electronics allow for backward connections, but others will fail if wired incorrectly. A well-designed system ensures that all equations governing the circuit provide stable and predictable performance.
Applications of Direct Current
Powering Homes and Businesses
Many domestic DC installations use batteries and solar power systems to provide energy. These systems operate on low-voltage or extra-low voltage, ensuring safety and efficiency. Unlike alternating current, DC systems often require higher currents to deliver the same amount of power.
To support DC appliances, homes and businesses use special sockets, connectors, and switches. Some electronic circuits include a diode bridge to correct polarity if connected incorrectly. Whether for lighting, charging devices, or running essential fixtures, a reliable DC power supply is crucial for many applications.
DC in Vehicles
Most automotive applications rely on DC power, with a battery providing energy for engine starting, lighting, and the ignition system. Standard 12 V systems are common in highway passenger vehicles, while heavy trucks and farm equipment often use 24 volt systems. Some older models, like the classic Volkswagen Beetle, ran on 6 V systems.
Modern battery electric vehicles operate with two low-voltage and high-voltage DC systems. The 12V system handles regular functions like climate control and the infotainment system, while the 300-400V system powers the traction motors. Using a higher voltage increases efficiency by reducing the current flowing through the system.
To manage battery charging, an alternator—an AC device—works with a rectifier to convert AC into DC. Some vehicles use a 42 V electrical system, but this is rare. In many cases, the metal frame of the vehicle acts as a return conductor, connecting the chassis ground to the negative pole of the circuit for stable performance.
In some marine vehicles, positive ground configurations are used instead of the typical negative pole connection. Wires and weight are carefully managed in vehicle design to improve energy use. Whether in internal combustion engine vehicles or electric models, voltage and current play a crucial role in delivering reliable power.
DC Power in Telecommunications
Many telephone exchanges use a -48 V DC power supply to keep systems running during power interruptions. The battery bank ensures that subscriber lines stay active even when external power fails. To prevent electrolysis and depositions, the power supply system follows a negative polarity setup by grounding the positive terminal.
In wired telephones, a twisted pair of wires carries both DC components and AC component signals. The bias tee helps separate the audio signal from the power. Some communication equipment relies on a DC-DC converter to adjust voltage levels for different needs. This stable battery system ensures continuous connectivity.
Efficient High-Voltage Transmission
High-voltage direct current (HVDC) is used for electric power transmission over long distances. Unlike alternating current systems, HVDC systems are less expensive and reduce electrical losses. This makes the bulk transmission of electrical power more efficient for long-distance transmission using DC technology.
Unique Uses of DC Power
Fuel cells generate electricity by combining hydrogen and oxygen with a catalyst, producing water as a byproduct. Many light aircraft rely on DC for their electrical systems, using 12 V or 24 V, similar to automobiles. This ensures stable power for critical operations in flight.
Conclusion
Direct current (DC) plays a crucial role in various applications, from power transmission to automotive and telecommunication systems. It offers stable and efficient energy for batteries, fuel cells, and electrical systems. This means light aircraft can rely on it for consistent performance in key areas.
Industries are gaining from new tech like high-voltage direct current (HVDC) and DC power supply systems. These advancements reduce electrical losses and boost efficiency. DC technology is vital for today’s electrical uses, whether in homes, cars, or communication networks.
