What is a Buchholz relay?

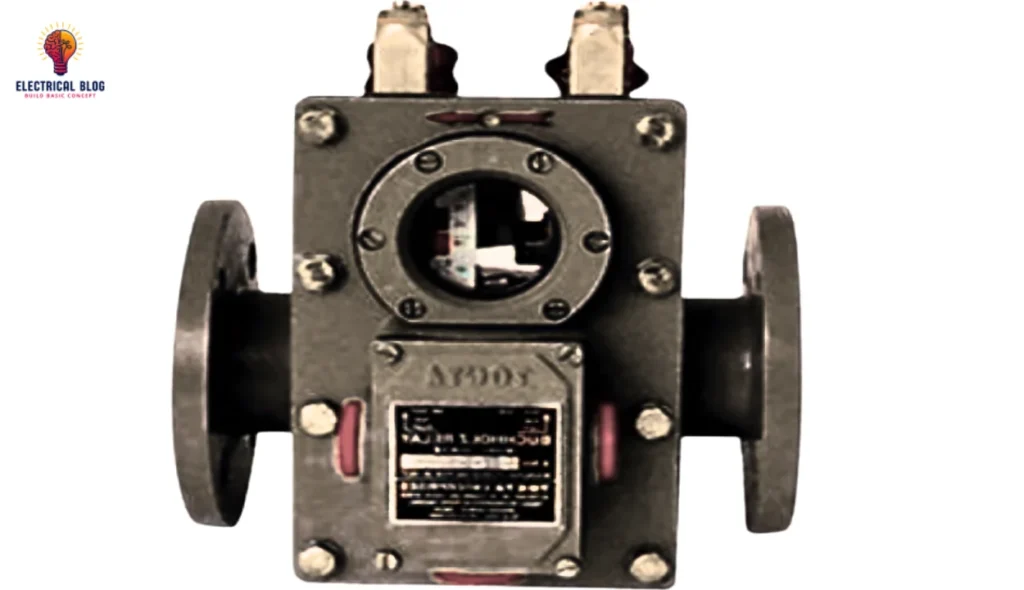

A Buchholz relay is a protective safety device used in oil-filled transformers and reactors to detect faults early. It operates by sensing gas formation, which can occur due to dielectric failure inside the equipment. Positioned in the main oil circuit, it connects the transformer to an external reservoir, known as the conservator.
Construction of Buchholz Relay
The relay has two main elements, each designed to respond to specific fault conditions. These components ensure a quick response to any abnormalities within the system.

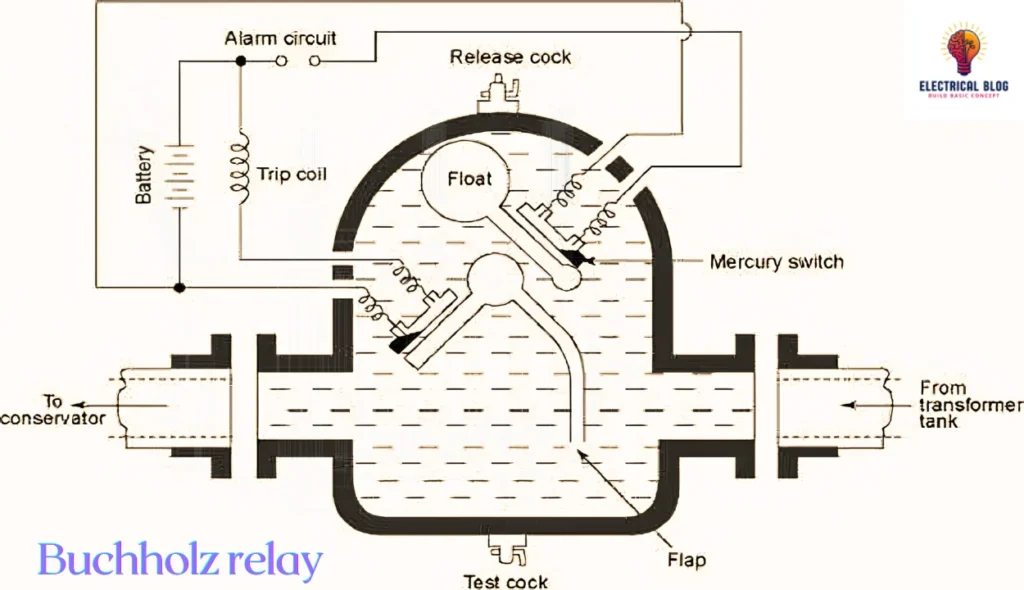

Inside the Buchholz relay, an upper float is attached to a hinge, allowing it to move up and down with the oil level. A mercury switch is fitted on the float, adjusting its alignment as the oil rises or falls. In the lower section, a baffle plate near the inlet responds to sudden oil pressure changes. If a significant failure occurs, this plate shifts, activating another switch to trigger an alarm. The electrical leads from both switches pass through a molded terminal block for reliable connectivity.
Additionally, the relay has gas release pockets at the top to allow trapped gas to escape. These pockets play a crucial role in identifying faults by analyzing the accumulated gas. The device is highly sensitive to even minor faults, ensuring early warnings before major damage can occur. The oil-filled container and tank design allow for precise fault detection in high-voltage power systems. This effective protective mechanism helps transform complex fault signals into actionable safety measures. You can also read SPDT Switch.
Buchholz Relay Working Principle
The Buchholz relay is a mechanically actuated device designed to detect faults in a transformer before they cause severe damage. When an internal breakdown occurs, the insulating oil begins to decompose, forming hydrocarbon gases, including CO2. These gases accumulate in the upper container, causing the oil level to fall, which shifts the float inside the relay. As the float moves, it tilts the mercury switch, leading to the closed circuit and activating the alarm.
If the breakdown is more severe, such as a short circuit between phases or a fault to earth, an oil surge is generated. This surge strikes the baffle element, which in turn activates the lower switch inside the relay. The movement of this switch energizes the trip circuit, immediately signaling the electrical system to take action. The circuit breakers on both LV and HV sides respond by tripping, effectively isolating the faulty unit to prevent further damage.
Another potential trigger for the relay is leakage in the main tank, which leads to the formation of air bubbles in the release pockets. These bubbles affect the position of the float, again causing the contacts to engage. This allows engineers to determine the type of fault by analyzing the gases released in the relay’s pockets. The tap changing equipment can also influence the relay’s function, especially when changing load conditions.
The Buchholz relay is closely linked to the power system for enhanced protection. If an issue arises, the trip command is sent immediately, ensuring that the electrical circuits remain safe. The relay is crucial in protecting the core of the transformer, which can be damaged due to overheating or insulation failure. Since the system is sensitive to even small irregularities, it provides early warning signs before major failures.
With its ability to detect minor faults and react to severe conditions, the Buchholz relay remains essential equipment for maintaining power reliability. Its integration into electrical circuits ensures quick tripping and fault isolation, helping prevent costly repairs. The use of insulation, oil, and mechanical switches makes it a highly efficient protective mechanism for transformers. Understanding its working principle helps engineers take proactive measures for transformer safety. You can also read oil surge relay.
Precautions for Buchholz relay operation
The Buchholz relay can sometimes be actuated even when there is no fault in the transformer. This can happen if oil and air get accumulated under the relay cover while topping up the oil. To prevent false alarms, a mechanical lock is used to stop the movement of the mercury switches. This is crucial during transportation, as sudden vibrations can damage the breakable glass bulbs inside the relay. Ensuring proper handling and installation helps maintain the relay’s accuracy and longevity.
In some cases, the lower float may trigger due to the high velocity of oil in the connection pipe, even if no internal fault exists. This can occur when overcurrents flow through the winding, leading to overheated copper and an expansion in oil volume. Additionally, an external short circuit can cause pressure surges, affecting the circuit operation. Engineers must carefully monitor these factors to avoid unnecessary relay activation. Proper design and maintenance reduce the risk of false operations in high-voltage systems.
Application of Buchholz Relay
The Buchholz relay has been widely used since the 1940s in oil-filled transformers for power distribution and protection. It is installed between the main tank and the conservator, allowing any gas to flow upward through the piping. If the relay detects gassing, it immediately trips the breaker, preventing overheating or a short circuit. The detector helps in isolating faulty equipment by cutting off the electric supply. This ensures that failures do not spread across the high-voltage network.
Beyond substations, Buchholz relays are also used in electrified locomotives and traction units that rely on AC supply from overhead wires. The voltage is fed down to a transformer, which steps it to 750 or 1000 volts for the train’s circuit. If gas evolves in the oil-cooled system, the relay triggers a trip, cutting off power to prevent damage. A schematic diagram of the system shows that a relay marked green plays a key role in protection. Once tripped, only trained maintenance staff can perform the resetting process.
Limitations of Buchholz Relay
The Buchholz relay can only detect a fault that occurs below the oil level inside the transformer. Any fault occurring above the level or in other parts of the system remains undetected.
Since the relay is used only in oil-immersed transformers, it is not suitable for dry-type or air-cooled transformers. This makes it a limited protection method in diverse applications.
The response time of the relay is high, meaning it may not act as fast as some modern digital protection systems. This delay can be a concern in cases of sudden faults.
The relay does not protect the connecting cables, requiring a separate protection system for these components. Without this additional setup, faults in the cables may go unnoticed.
Advantages of the Buchholz Relay
The Buchholz relay quickly indicates any internal faults in the transformer, helping to detect issues early. By sensing heating, it prevents further damage and allows necessary action to be taken before a major failure occurs.
Engineers can determine the severity of the fault without dismantling the transformer, making troubleshooting faster and more efficient. This feature helps avoid unnecessary downtime and costly repairs.
Conclusion
The Buchholz relay is a vital protective device in oil-filled transformers, ensuring early fault detection and preventing severe damage. Its ability to detect gas accumulation, oil leaks, and internal breakdowns makes it a crucial safeguard for power systems. By isolating faulty units and triggering circuit breakers, it prevents transformer failures and enhances system reliability. Despite some limitations, such as its restriction to oil-immersed transformers, its role in protecting electrical equipment remains invaluable. With proper maintenance and correct installation, the Buchholz relay continues to be a reliable safety mechanism for transformers in power distribution networks.
