Introduction
In electrical engineering, the diversity factor is key. It helps optimize system design and ensure efficient energy distribution. This article explores the diversity factor. It covers its uses and importance in electrical and heat networks.
What is the Diversity Factor?

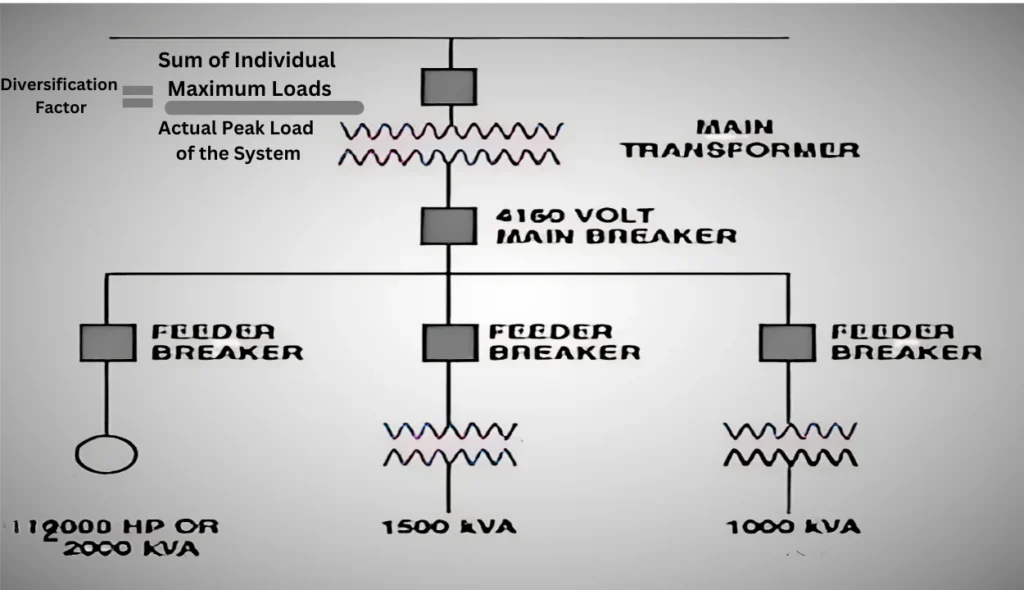

The diversity factor is a key ratio in electrical system design and analysis. It is the ratio of the sum of the individual, non-coincident maximum loads of various subdivisions of a system to the maximum demand of the entire system. In mathematical terms, we can represent this as:
Diversity Factor=∑Non-coincident Maximum Loads/Maximum Demand of the System
Key Characteristics of Diversity Factors:
Greater Than One: The diversity factor is always > 1. It means the system’s peak load is less than the sum of the individual max loads. This difference is due to load usage. Not all devices peak at the same time.
Impact on Power: The diversity factor affects power demand calculations. It does not influence energy consumption. It is a tool used to align the calculated peak power load with the actual load experienced by the system.
Applications in Electrical Systems
Coordination Studies
In electrical engineering, the diversity factor estimates the load at specific nodes in a system, especially in studies. This estimate is critical for designing efficient, reliable systems. It avoids oversizing components, which can cause unnecessary costs.
Load Calculation
Engineers must consider the diversification factor when designing systems. It ensures the infrastructure can handle peak loads without being overly built. In a facility with many high-load AC units, the diversity factor helps find the actual peak demand. It accounts for the fact that not all units will run at full capacity at the same time.
Diversity Factor in Heat Networks
In heat networks, “diversity factor” is sometimes a synonym for “coincidence factor.” However, it’s crucial to know that, in this context, the diversification factor is usually less than 1. This lower value reflects that, in heat systems, the peak loads of hot water and space heating do not coincide across all units.
Case Studies:
Space Heating: In large buildings with over 40 homes, the diversity factor stabilizes at about 0.62. This means a more distributed demand across the system.
Domestic Hot Water: In hot water systems, especially in large buildings, the diversification factor drops below 0.1. This shows low peak coincidence and high load distribution.
Diversified Load and Diversification Factor
Diversified load is the expected peak-period load. It considers factors like capacity, utilization, diversity, demand, and load factors. This calculation is vital for system design. It ensures the system meets the demand without being too big or too small.
Importance in System Design
The diversification factor is key in finding the system’s max load. It is a mix of factors, including the diversity factor. Engineers can create robust, cost-effective, and efficient systems. They can do this by understanding and applying the diversification factor.
Conclusion
The diversity factor is key in electrical engineering. It guides the design and operation of electrical and heat networks. Engineers can optimize system performance by using the diversification factor. This will ensure reliability and efficiency while cutting costs.
This article explains the diversification factor. It is important in many engineering applications. By mastering the diversification factor, engineers can make their systems effective and cost-efficient. This will lead to more sustainable and efficient energy use.
FAQs
What is meant by diversity factors?
Diversity factors are the ratio of the sum of non-coincident maximum loads of various subdivisions of a system to the system’s maximum demand. It measures how parts of a system peak at different times, not all at once. This concept is crucial in electrical engineering. It’s key for designing systems where the peak load is much lower than the sum of all potential loads. This is due to the time-dependent operation of different devices or subsystems.
Example: A transformer supplies power to a small mall with various stores. Each store might have a maximum load of 20 kW. If there are 10 stores, the total possible maximum load is 200 kW. However, not all stores will use their maximum power at once. So, the peak demand on the transformer might be only 120 kW. The factor would therefore be:
Diversity Factor=∑Maximum Loads/Peak Load=200 kW/120 kW=1.67
Sizing the transformer for 120 kW, not 200 kW, optimizes efficiency and cost-effectiveness. This cut in capacity matches actual power needs. It avoids costly overdesign. This saves money and improves efficiency without sacrificing performance.
What is the Diversity Factor according to the IEC?
The IEC defines the factor as the inverse of the coincidence factor. The IEC defines the diversity factor. It measures the non-coincidence of peak loads within a system. It helps design electrical systems by knowing the true demand. This is due to various loads not peaking at the same time. The coincidence factor, the inverse of the factor, measures how often different loads peak at the same time.
Why is the Diversity Factor always greater than 1?
The diversity factor is always greater than 1. It accounts for the fact that not all devices or subsystems in a larger system will peak at the same time. A diversification factor of 1 would mean every device peaks at the same time. This is rare in practice. Instead, loads peak at different times. So, total demand is less than the sum of all individual peak demands. The non-coincidence of peaks creates a factor over 1. This shows a lower demand on the system than the theoretical maximum.
What is the Diversity Factor of a transformer?
The diversity factor of a transformer is a ratio. It measures the difference between the total max loads of all connected equipment and the actual peak load on the transformer. In practice, not all loads will be at their max at once. So, the transformer doesn’t need to handle the sum of all max loads. The factor allows for more accurate sizing. It ensures the transformer can meet peak demand without being oversized. The diversification factor for a transformer depends on its use and the connected loads.
