Introduction
Electrical generators convert mechanical energy into electrical energy. They are vital to modern power systems. Of all generators, the synchronous generator is the most vital. It is used in power generation. Its ability to sync with the grid at a constant speed makes it ideal for large-scale applications. These include 3-phase synchronous machines and 3-phase AC synchronous generators.
The importance of synchronous generators in power generation cannot be overstated. These generators power many conventional and renewable energy plants. They ensure efficient energy conversion and a stable electricity supply. Both 2-pole and 4-pole synchronous generators are crucial to power grids worldwide. Their versatility and adaptability make them essential.
This article will provide a deep understanding of synchronous generators. It will cover their principles, applications, and the latest innovations. We will explore various types, including the three-phase synchronous generator. We will examine their advantages, how they work, and their relevance today.
What is a synchronous generator?
A synchronous generator is an electrical generator. It produces alternating current (AC) by converting mechanical energy into electrical energy. A synchronous generator’s key feature is its rotor. It rotates at the same speed as the magnetic field from the stator. This speed is called synchronous speed. This sync keeps the generator at a constant frequency. It is ideal for large-scale power generation. This is true for 3-phase synchronous machines and AC generators.
Working Principle of a Synchronous Generator
A synchronous generator works on electromagnetic induction, as per Faraday’s Law. This law states that a voltage is induced in a conductor when it is exposed to a changing magnetic field. A synchronous generator uses mechanical energy to rotate its rotor. This generates a magnetic field. It interacts with the stator windings, inducing an electrical voltage.
Electromagnetic Induction and Faraday’s Law
A synchronous generator produces electricity using Faraday’s Law of electromagnetic induction. This law states that a magnetic field can induce an EMF in a conductor. This can happen in two ways: if the conductor moves in the field, or if the magnetic field around it changes. A synchronous generator’s rotating rotor creates a magnetic field. It cuts across the stator windings, inducing an AC voltage. This AC voltage is then used to supply electrical power to external loads.
How a Synchronous Generator Produces Electricity

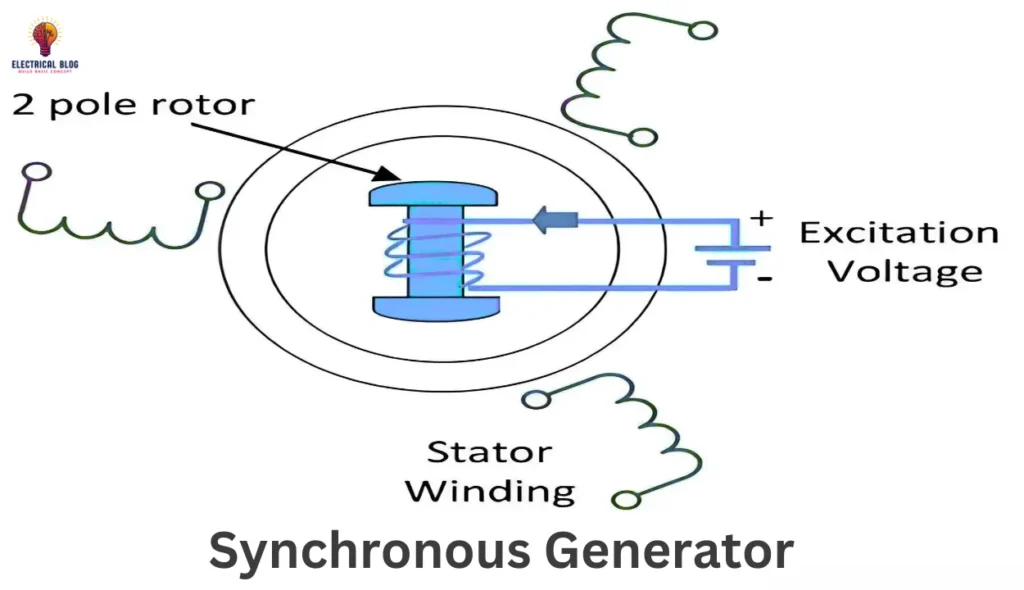

In a synchronous generator, the rotor is connected to a prime mover, like a turbine or engine. It is rotated at a specific speed. This rotational motion creates a moving magnetic field. This magnetic field interacts with the stator windings. It generates voltage through electromagnetic induction. The AC power frequency depends on the generator’s speed and the rotor’s number of poles.
For example, a 4-pole synchronous generator has a rotor with four magnetic poles. A 2-pole synchronous generator has a rotor with two. The rotor’s rotating magnetic field induces AC in the stator windings, generating electricity. Synchronous generators are vital in power generation. They convert mechanical energy into electrical energy.
Synchronous Speed and Its Relation to Frequency
Synchronous speed is the rotor’s speed for the generator to match the grid frequency. This speed depends on the generator’s output frequency and the number of poles. The formula that governs this relationship is:
Where:
N = Synchronous speed (in revolutions per minute, RPM)
f = Frequency of the AC output (in hertz, Hz)
P = Number of poles in the generator
For a 3-phase, 4-pole synchronous generator at 60 Hz, the synchronous speed can be calculated as:
Ns = 120×60/4 =1800 RPM
The generator’s rotor must spin at 1,800 RPM to produce 60 Hz, the standard frequency in many power grids.
Mathematical Equations Governing Synchronous Generator Operations
A synchronous generator runs on several mathematical equations. These include the voltage, power, and torque equations.
Induced Voltage (EMF): The EMF generated in the stator windings is given by:
E=4.44×f×N×ϕ
Where:
E = Induced EMF
f = Frequency of AC output
N = Number of turns in the stator winding
φ = Magnetic flux per pole
Output Power: The output power of the synchronous generator is given by:
P = V × I × cos(ϕ)
Where:
P = Output power (in watts)
V = Voltage
I = Current
cos(φ) = Power factor
These equations help analyze the performance of synchronous generators. They are especially useful for large-scale power generation.
Types of Synchronous Generators
Synchronous generators have many designs. They suit different applications, conditions, and power needs. The two main types of synchronous generators are: 1. Salient pole 2. Cylindrical rotor. These designs suit various high and low-speed uses. They work for both small and large power generation applications.
Salient Pole vs. Cylindrical Rotor Synchronous Generators
Salient Pole Synchronous Generators
These generators have large, outwardly projecting poles. They are mounted on the rotor. This design is for low-speed uses, like hydroelectric plants. There, the mechanical prime mover, like a water turbine, runs at slow speeds. The rotor’s large diameter creates a strong magnetic field at low speeds. So, salient pole synchronous generators are ideal for low-frequency power generation.
Cylindrical Rotor Synchronous Generators
These are also called non-salient pole generators. They have a smooth rotor with distributed windings. This design is for high-speed applications, where the rotor must spin very fast. These generators are in thermal power plants, like steam or gas turbine ones. They need high-speed rotation to produce electricity efficiently.
High-Speed and Low-Speed Applications
Synchronous generators have two designs: salient pole and cylindrical rotor. Their speed and the prime mover type are linked to these designs.
High-Speed Applications
Use cylindrical rotor synchronous generators for high-speed tasks. These include steam and gas turbines, which can reach thousands of RPM. These generators are often used in 3-phase synchronous generators. They are used for large-scale power generation, especially in thermal power plants. Their smooth rotor design lets them handle high stresses. It does this without compromising performance.
Low-Speed Applications
Salient pole synchronous generators are best for low-speed uses. These include hydroelectric plants. Their water turbines run much slower than steam or gas turbines. The salient pole design generates a strong magnetic flux at low RPM. Therefore, these generators are ideal for stable AC power at low speeds.
Small vs. Large Synchronous Generators and Their Use Cases
Small Synchronous Generators
They are used in niche applications with low power needs. These generators are at industrial sites, backup power systems, or small renewable energy systems. For instance, small synchronous generators are often used in 3 phase synchronous machines. They are for distributed generation systems or small, local power stations.
Large Synchronous Generators
They are vital for grid-connected power stations. They generate large amounts of electrical power. These generators are often found in thermal, hydroelectric, and nuclear power plants. They are driven by large mechanical prime movers, like steam or water turbines. Large 3-phase AC synchronous generators handle higher voltages and currents. They are suitable for large-scale power generation and distribution.
Key Components of Synchronous Generators
A synchronous generator has several critical parts. They work together to efficiently convert mechanical energy into electrical energy. Each part plays a vital role in ensuring smooth operation and power generation. A synchronous generator has four main parts: the stator, rotor, excitation system, and cooling system.

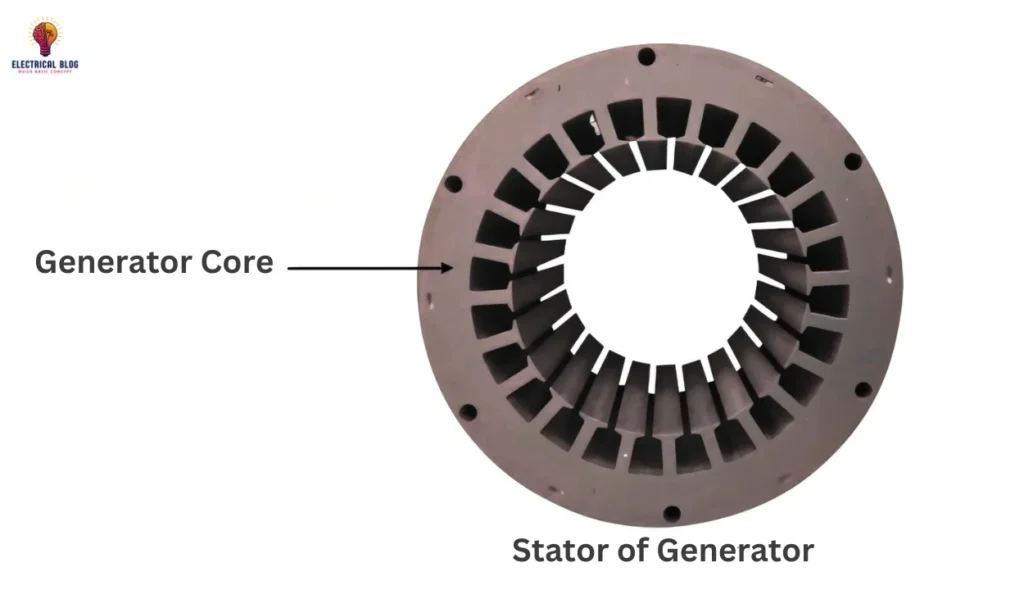

Stator
The stator is a stationary part of the synchronous generator. Its main function is to convert the rotor’s magnetic field into electrical energy. It consists of three primary components:
Core: The stator core is made of laminated steel sheets. This increases efficiency and lowers eddy current losses. These laminations are insulated to minimize loss from induced currents in the stator.
Windings: The stator has copper windings. They are the conductors where the voltage is induced. The stator core contains slots where these windings are positioned. A 3 phase synchronous generator has three sets of windings. They produce a three-phase AC voltage.
The outer frame of the stator supports and protects the core and windings.
The stator uses high-grade electrical steel for the core. It ensures minimal energy losses. The windings use high-conductivity copper or aluminum. The stator captures the rotor’s magnetic field. It converts it into usable AC power. This makes it key to the energy conversion in synchronous generators.
Rotor
The rotor is the rotating part of the synchronous generator. It produces a magnetic field. This field interacts with the stator to generate electricity. There are two main types of rotors used in synchronous generators:
Salient Pole Rotor: This rotor has large, protruding poles. They are mounted on a large-diameter rotor. Salient pole synchronous generators are used in low-speed applications, like hydroelectric plants. The salient pole rotor has pole shoes. They are fitted with field windings. These are energized to create the required magnetic field.
Cylindrical Rotor: The cylindrical rotor synchronous generator has a smooth rotor with distributed windings. This design is for high-speed applications, like turbine-driven generators. The cylindrical rotor is more balanced. It can withstand the stresses of high speeds.
In both rotor types, the rotating magnetic field is crucial. It induces voltage in the stator windings. The rotor’s poles set the generator’s synchronous speed. This affects the output frequency.
Excitation System
The excitation system supplies the field current to the rotor windings. This creates a magnetic field. There are two primary types of excitation systems used in synchronous generators:
Brushless Excitation: A brushless excitation system provides the field current. It does so without brushes or slip rings. A small auxiliary generator (called an exciter) is mounted on the same shaft as the main generator. The exciter generates a small amount of AC, which is rectified to DC and supplied to the rotor windings. This system is efficient. It reduces maintenance and wear on brushes.
Brushed Excitation: A brushed excitation system uses brushes and slip rings to send the field current to the rotor windings. It is less efficient than the brushless system. The brushed system needs regular maintenance. The brushes and slip rings wear over time.
Both systems usually have automatic voltage regulation (AVR). Despite variations in the load conditions, it maintains a steady output voltage. The AVR adjusts the field current in real-time. It ensures the generator always produces the correct voltage.
Cooling Systems
Cooling is key to a synchronous generator’s efficiency and life. Excessive heat can degrade the windings and other parts. Synchronous generators use different cooling systems. It depends on their size, design, and environment.
Air-Cooled Design: In smaller synchronous generators, air is used as the cooling medium. Fans attached to the rotor circulate air through the generator, dissipating heat. Air-cooled generators are simpler and more compact. They suit low to medium-power uses.
Hydrogen-Cooled Design: Thermal power plants use large synchronous generators. They often use hydrogen-cooled systems. Hydrogen conducts heat better than air. It removes heat more efficiently. It is also less dense, reducing windage losses in the generator. Hydrogen-cooled generators are common in high-power applications. They are used in 3-phase AC synchronous generators for large power grids.
Water-Cooled Design: Water cooling is best for very large synchronous generators. This system circulates water through heat exchangers to cool the generator. This method is best for high-power uses. Here, air or hydrogen cooling can’t keep safe temperatures.
Applications and Uses of Synchronous Generators
Synchronous generators are vital in many sectors. They are able to produce a steady voltage and frequency. They are primarily used in:
Power Plants: In conventional plants, turbines convert steam, water, or gas into mechanical energy. Synchronous generators then convert that into electrical energy. Their fixed-speed operation, tied to the power system frequency, makes them ideal for large-scale power generation.
Renewable Energy Systems: Wind and hydropower both use synchronous generators. They maintain a stable electrical output. They can connect to and sync with the grid. This ensures that renewable power is integrated without causing frequency fluctuations.
Industrial Applications: Industries with high energy demands use synchronous generators. They efficiently generate power and control the power factor. They do this by supplying or absorbing reactive power. This is key for power quality and efficiency in large factories.
Importance in Ensuring Grid Stability and Handling Load Variations
Synchronous generators are crucial in maintaining grid stability. They help handle load changes by adjusting their excitation. This balances supply and demand while keeping the system’s frequency and voltage. This role is particularly important in modern grids with fluctuating renewable energy inputs.
Control and Operation of Synchronous Generators
Voltage Regulation and Control Methods
Voltage regulation is one of the primary functions of a synchronous generator. A constant voltage output is essential for a stable power system. The following methods are commonly used for voltage control:
Excitation Control: The excitation system of a synchronous generator adjusts the rotor’s magnetic field. This can be done using:
Automatic Voltage Regulators (AVRs) continuously monitor the output voltage. They adjust the excitation to maintain the desired voltage level.
Brushless Excitation Systems: They eliminate the need for brushes and slip rings. This reduces maintenance and improves reliability.
Reactive Power Control: A synchronous generator can stabilize grid voltage. It does this by adjusting its reactive power output. This is vital during peak load times or when adding loads to the system.
Parallel Operation and Synchronization with the Grid
Synchronous generators often operate in parallel with other generators and the electrical grid. Proper synchronization is essential to ensure safe and efficient operation. Key considerations include:
Synchronization Procedures: A synchronous generator must be synchronized with the grid before connecting it.
Frequency: The generator’s rotor speed must match the grid frequency.
Voltage: The output voltage of the generator must be adjusted to match the grid voltage.
Phase Sequence: The phase sequence must align to avoid short circuits.
Automatic Synchronizers: These devices automate the sync process. They ensure a precise match of frequency, voltage, and phase before connection. This minimizes disturbances in the grid.
Load Sharing and Power Factor Control
When multiple synchronous generators run in parallel, they must share the load. This is key for balanced operation.
Load Sharing Techniques:
Droop Control: This method lets generators share the load. It is based on their frequency response. As the load increases, the frequency drops slightly. This prompts generators to increase their output.
Master-Slave Control: One generator is the master. The others follow its frequency and voltage. They share the load based on their capabilities.
Power Factor Control: Synchronous generators can change their reactive power output. This lets them operate at different power factors. It helps manage the electrical system’s power factor. This improves efficiency and reduces losses.
Overload Protection, Fault Detection, and Maintenance Considerations
Ensuring the safe operation of synchronous generators requires robust protection and maintenance strategies.
Overload Protection: Protecting a synchronous generator from overload is crucial to prevent damage. This can be achieved through:
Overcurrent Relays: These devices monitor the generator’s current. They disconnect it from the grid if the current exceeds safe limits.
Thermal Protection: Monitoring the generator’s temperature can prevent overheating. This ensures reliable operation.
Fault Detection: Continuous monitoring systems can detect faults in the generator. This includes short circuits and abnormal conditions. Early detection allows for timely intervention, minimizing damage and downtime.
Maintenance Considerations: Regular maintenance of synchronous generators is essential to ensure long-term reliability. Key maintenance activities include:
Inspect the Excitation System: Check the AVR and exciter for wear and function.
Cooling System Maintenance: Ensure the cooling systems work to prevent overheating. They may be air-cooled, hydrogen-cooled, or water-cooled.
Mechanical Inspections: Regularly check the rotor and stator for wear, misalignment, or damage.
Voltage Regulation, Efficiency, and Power Factor Control
Voltage regulation in a synchronous generator is vital. It keeps the output voltage constant. The excitation system controls this. It affects the rotor’s magnetic field. The generator adjusts the excitation current to stabilize the voltage. It does this by compensating for load changes.
Efficiency is the balance between mechanical energy input and electrical energy output. Efficiency is decreased by generator losses such as core, copper, and mechanical losses. Ensuring minimal losses is crucial for maintaining high operational efficiency.
Power factor control involves regulating the reactive power (VAr). Reactive power can be supplied or absorbed by the generator by varying the excitation. As a result, the linked system’s power factor increases.
Steady-State and Transient Behavior of Synchronous Generators
In steady-state operation, the generator runs at synchronous speed. It provides a stable voltage and frequency. However, during disturbances or load changes, the generator may behave erratically. Its voltage and frequency may temporarily deviate before stabilizing. Control systems are vital in managing these transitions.
Synchronization with the Grid: How It’s Done and Why It’s Important
Synchronization is the process of matching a generator’s voltage, frequency, and phase with the power grid before connecting it. If these parameters are not aligned, the generator may fail. It could suffer severe mechanical stress or electrical failure. Proper synchronization ensures that the generator operates smoothly and efficiently within the grid.
Advantages and Disadvantages of Synchronous Generators
Key Benefits
Synchronous generators offer several significant advantages, making them essential in various applications:
High Efficiency: Synchronous generators are very efficient. They excel in large-scale power generation. They can operate at a higher power factor than induction generators. This means better energy use.
These generators provide a consistent and stable output voltage and frequency. This stability is vital for the power supply. It is especially important in interconnected grid systems.
Power Factor Control: Synchronous generators can control the power factor. They do this through their excitation systems. They can run in leading or lagging modes. This can support grid stability and improve power quality.
Challenges
Despite their advantages, synchronous generators also come with some notable challenges:
Maintenance Requirements: These generators require more maintenance than others. Their complex rotor and excitation systems are the main causes.
Synchronization is complex. Synchronous generators must be in sync with the grid to operate effectively. This requires precise control systems and skilled staff. So, they are harder to integrate than simpler options, like induction generators.
Higher Initial Costs: Synchronous generators often cost more to buy than other types. This may deter some users, despite their long-term benefits.
Conclusion
Synchronous generators are vital to modern energy systems. They provide stability, reliability, and power quality. They have advantages. They have high power density and a fast response to load changes. They can supply reactive power, which is key for maintaining grid voltage. As we shift to renewable energy, synchronous generators will be vital. They will integrate variable renewable sources and keep the grid stable.
The future of synchronous generators is bright. New materials, better control systems, and their role in smart grids drive this trend. Innovations like virtual synchronous machines (VSMs) aim to mimic traditional synchronous generators. They improve the grid’s ability to use renewable energy sources. Also, brushless synchronous generators may soon be more efficient and durable. This will keep them relevant in the changing energy sector.
