Introduction
Inductive sensors have emerged as a vital component in modern industrial applications. These sensors detect metallic objects with unmatched precision and reliability, without direct contact. Their growing popularity in automotive, manufacturing, and robotics shows their importance. This article will explore inductive sensors. We will cover how they work, their key applications, and their role in many technologies.
What is an inductive sensor?
Inductive sensor is a non-contact devices. It use electromagnetic induction to detect the presence or absence of metallic objects. Unlike traditional, contact-based sensor, inductive sensor has no moving parts. So, It can work without wear and tear. This makes them very durable. It is particularly effective in harsh environments where mechanical components may fail.
These sensors consist of a coil that generates an electromagnetic field. The sensor detects changes in inductance when a metallic object enters this field. This triggers a response. Inductive sensors have no moving parts. So, they are long-lasting, precise, and can work in extreme conditions.
Types of Inductive Sensor
Oscillator-Based Inductive Sensor
These are the most common forms of inductive sensors. They use a coil driven by an oscillator to create a magnetic field. When a metallic object approaches the sensor, the coil’s inductance changes. This causes a measurable variation in frequency or current.
Applications:
Metal Detectors: Used for detecting hidden metal objects.
Automated Industrial Systems: Utilized in assembly lines to detect metal components.
Traffic Light Control: It detects vehicles using induction loops in the road.
Eddy Current-Based Inductive Sensors
This type of sensor uses two coils. One makes a magnetic field. The other detects changes in this field. These changes are caused by eddy currents in nearby metallic objects.
Applications:
Non-Destructive Testing: Used to detect flaws in metal objects without damaging them.
Nuclear Magnetic Resonance (NMR) is vital to MRI, a medical imaging technique.
Inductive Proximity Sensors
Inductive proximity sensors are used for detecting metallic objects without physical contact. They are commonly found in industrial settings for position detection and counting applications. The sensing range depends on the type of metal. Ferrous metals, like steel, have a longer range than non-ferrous ones, like copper or aluminum.
Applications:
Car Wash Systems: Detects the presence of vehicles for automated washing.
Factory Automation: Widely used for object detection in production lines.

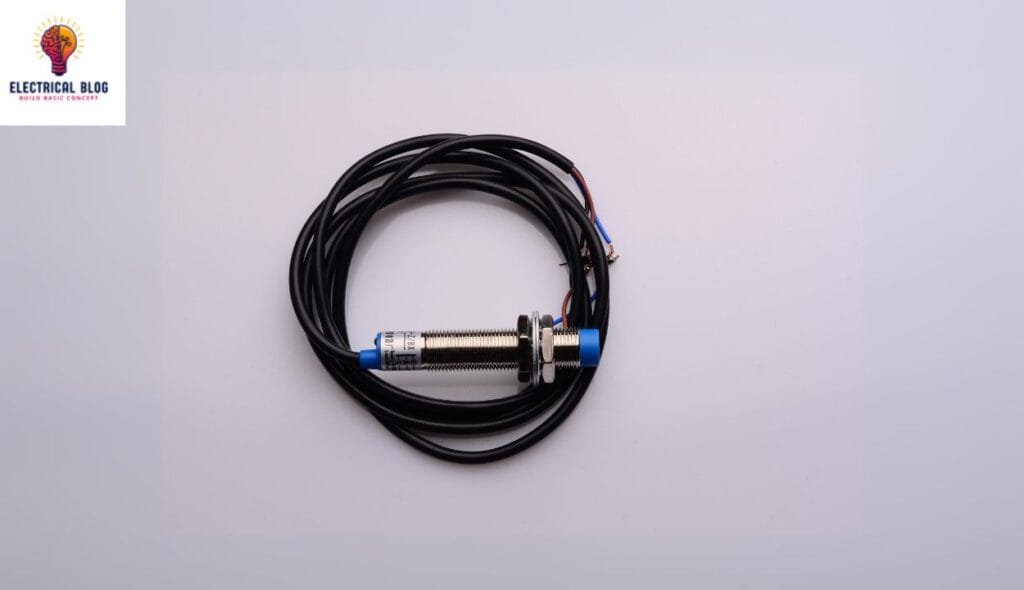

Inductive proximity Sensors
Search Coil Magnetometers
Inductive sensors are vital in search coil magnetometers. They are used in space exploration and electromagnetic wave measurement. These magnetometers use inductive sensing to detect small changes in magnetic fields. This enables the study of natural electromagnetic phenomena on Earth and in space.
Nuclear Magnetic Resonance (NMR) coils
Inductive sensors, or NMR coils, are crucial in NMR imaging. They detect the magnetic part of electromagnetic fields from nuclear spin precession. They are the basis of modern MRI technology. It has changed medical diagnostics. They provide detailed images of the body’s internal structures.
Difference between Inductive proximity and inductive level sensors
| Feature | Inductive Proximity Sensor | Inductive Level Sensor |
|---|---|---|
| Purpose | Detects presence or absence of metallic objects | Measures the level of metallic substances in a container |
| Detection Range | Typically short range (up to several millimeters) | Varies depending on the container size and application |
| Application | Position sensing, counting, speed detection | Monitoring and controlling the level of metallic liquids or granules |
| Object Detection | Detects individual metallic objects | Detects continuous level of metallic material |
| Mounting | Generally mounted close to the target object | Installed in or on the side of containers or tanks |
| Environment | Common in industrial automation, manufacturing | Used in process industries, chemical plants, storage tanks |
| Sensitivity | High sensitivity to small metallic objects | Calibrated for level measurement accuracy |
| Output | Digital output indicating object presence | Analog or digital output indicating material level |
| Operation Principle | Generates electromagnetic field to detect metal objects | Measures change in inductance as material level changes |
| Usage Examples | Detecting gears, screws, or metal parts on conveyor belts | Monitoring levels of metal powders, granules, or liquids |
Working principal of Inductive sensors
Inductive sensors work on Faraday’s Law of Induction. It states that a voltage is induced in a circuit when the magnetic flux through it changes. In simpler terms, a metal object in the sensor’s magnetic field changes the magnetic flux. This generates a voltage that triggers a response in the sensor. The sensor detects an object’s proximity by measuring a change in inductance. This change is due to the object’s interaction with the magnetic field.
Formula for Electromagnetic Induction
The fundamental relationship of inductive sensors is described by the following equation:
e = -N dΦ/dt
Where:
e = Induced electromotive force (EMF)
N = Number of turns in the coil
Φ = Magnetic flux through the coil
t = Time
This equation shows that the induced voltage is proportional to the change in magnetic flux over time. The faster the change, the larger the induced voltage. This happens when a metal object quickly moves through the field.
Sensing Range and Correction Factors
The sensing range of an inductive sensor is the maximum distance at which it can detect a metal object. This range varies depending on the material of the target and can be found in the sensor’s datasheet.
The correction factor for non-ferrous metals, like brass, aluminum, and copper, reduces the sensing range. For example, an inductive sensor with a 12 mm range for steel will only detect brass objects up to 6 mm away.
Applications of Inductive Sensors
Inductive sensors are a cornerstone of various industries. They offer unique advantages in situations where precision, reliability, and durability are paramount.
Automotive Industry
In automotive manufacturing, inductive sensors play an essential role in assembling and testing. They monitor engine parts, check alignment, and test automated systems. These sensors are non-contact. So, they can withstand harsh automotive environments, like oil, grease, and extreme temperatures.
Use case: Monitoring engine timing systems for correct alignment without mechanical interference.
Robotics and Automation
Robotic systems rely heavily on precise detection mechanisms to function effectively. Inductive sensors detect robotic arm positions, ensure proper movement, and find metal parts. Their durability makes them ideal for continuous operation in automated environments.
Use case: Detecting the presence of metal parts during robotic assembly to ensure precision.
Material Handling
Material handling systems use inductive sensors to track metal objects on conveyor belts, in storage systems, and during sorting. These sensors work well in dusty, debris-filled environments. Other sensor types may fail in those conditions.
Use case: Tracking metal parts as they move along a production line for packaging or assembly.
Packaging Industry
The packaging industry benefits from inductive sensors when monitoring machinery operations. They ensure that metal parts are correctly placed before sealing or labeling products.
Use case: Monitoring the presence of metal packaging parts in high-speed bottling lines.
Advantages of Inductive Sensors
Inductive sensors are ideal for industrial use. They offer many benefits. These advantages explain why they are the top choice for many critical operations.
High Reliability
Inductive sensors are preferred for their high reliability. They do not rely on contact-based detection. So, they have fewer mechanical failures and can withstand wear and tear.
Resistance to Environmental Factors
These sensors resist bad conditions, like moisture, dust, and dirt. This makes them suitable for industries like automotive and heavy machinery, where cleanliness may vary.
Long Service Life
Inductive sensors have no moving parts. So, they last much longer than mechanical switches and other proximity sensors. This means fewer replacements and lower maintenance costs. This helps in large industrial settings.
High Accuracy
Inductive sensors are incredibly accurate, providing precise detection of metallic objects. This accuracy is vital in applications. Even small errors in object detection can be costly.
Limitations of Inductive Sensors
Despite their advantages, inductive sensors also have some limitations. The most notable is their inability to detect non-metallic materials. This restriction confines their use to applications that involve metal detection. Also, inductive sensors have a limited sensing range. It’s less than that of capacitive or ultrasonic sensors. Extended-range models are available. But, they can’t match the distance of other sensors.
Future Trends in Inductive Sensor Technology
Advancements in sensor technology should make inductive sensors more versatile. Miniaturization and smart tech will improve these sensors. They will be more accurate, reliable, and have a greater range.
Miniaturization
As industries seek compact solutions, the demand for miniaturized inductive sensors is growing. These smaller sensors are ideal for tight spaces or complex machinery. Larger sensors are not practical in those cases.
Smart Sensors
Another exciting development is the use of IoT in inductive sensors. Smart sensors will provide real-time data and predictive maintenance. This will boost their use in automation and manufacturing.
Increased Sensitivity
Ongoing work aims to make inductive sensors more sensitive. It should detect smaller metal objects and some nonmetals when combined with other sensors.
Conclusion
Inductive sensors are vital in many industries. They provide reliable, durable metal detection solutions. Their non-contact operation, durability, and long life make them vital in manufacturing and automation. As technology evolves, they will become more versatile. They will be essential in industrial applications.
FAQs
What is the difference between inductive and capacitive sensor?
- Inductive Sensor: Senses metallic matters without physical contact using electromagnetic induction.
- Capacitive Sensor: Senses both metallic and non-metallic matters by determining variations in capacitance.
What is the principle of inductive proximity sensors?
Inductive proximity sensors work by causing an electromagnetic field. When a metallic item arrives this field. It induces eddy currents in the item, initiating a variation in the sensor’s fluctuation amplitude, which is noticed and causes the sensor.
Is inductive sensor and proximity sensor same?
They are a kind of proximity sensor precisely designed to sense metallic matters. Proximity sensors, in overall, can sense several kinds of matters dependent on their precise technology (e.g., inductive, capacitive, ultrasonic).
What materials can be detected by inductive sensor?
They can sense ferrous (e.g., iron, steel) and non-ferrous metals (e.g., aluminum, copper).
