Introduction
Air break switches are critical in modern electrical systems. They ensure the smooth, safe, and efficient operation of transmission and distribution networks. An air break switch isolates a network section for maintenance or fault clearance. These switches use air to extinguish electrical arcs. So, they are a reliable choice for high-voltage applications. This article will explore air break switches. We will cover their types, functions, and operation. We will focus on their use in outdoor settings and in power systems.

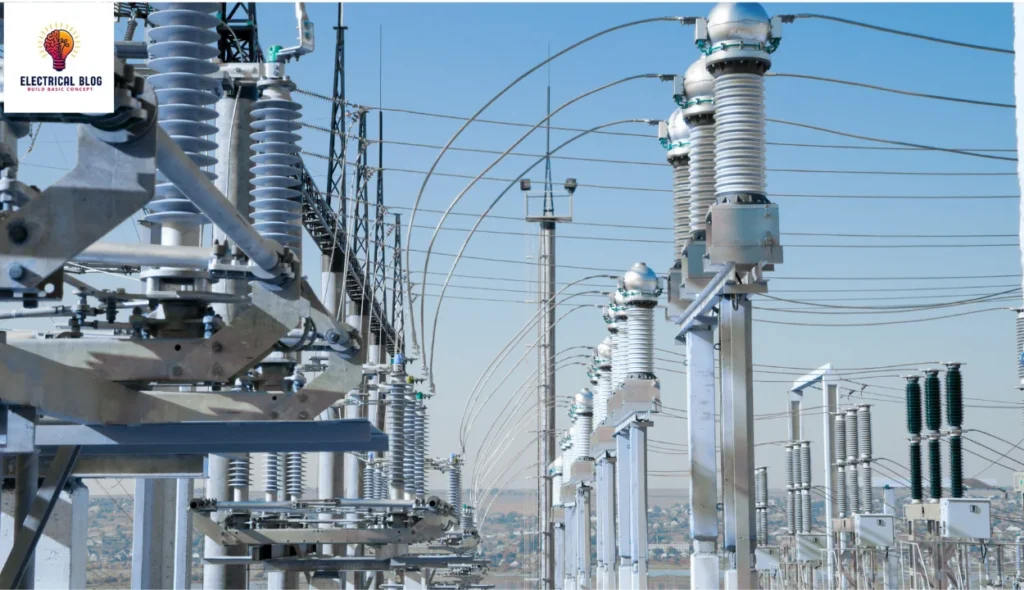

What is an Air Break Switch?
An air break switch is a high-voltage switch. Its contacts open in the air. The air acts as a dielectric to quench any electrical arc that forms when the switch operates. Arc extinction occurs by the natural movement of air, or in some designs, compressed air. This ensures that the switch operates safely, without damaging its components.
These switches are favored in outdoor electrical work. They serve as key isolation points. Air break switches are simple and cheap. Unlike other switches, they don’t use complex arc-quenching methods. They’re also easy to maintain.

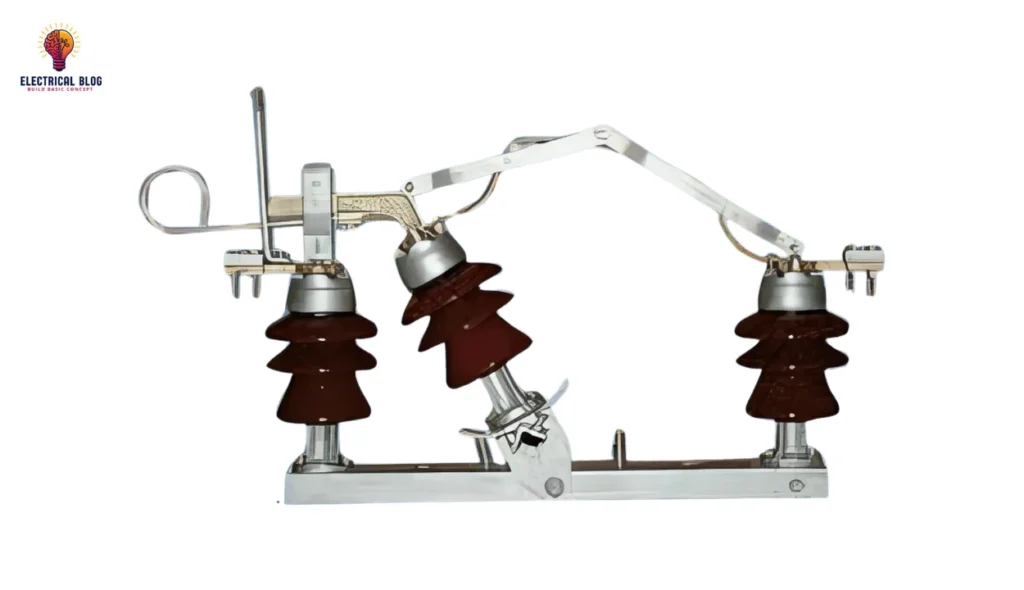

Air Break Switch diagram
Key Features:
Voltage Range: Typically, air break switches are rated for voltages of up to 35 kV.
Manual Operation: Many air break switches are operated manually. They have a handle at ground level for easy access.
Outdoor Installation: Air break switches are for outdoor use. They switch and isolate sections of transmission and distribution networks.
Types of Air Break Switches
There are two main types of air break switches. Each is for specific applications and requirements.
Single-Pole Air Break Switch
A single-pole air break switch controls electricity through a single conductor. This switch is typically used to isolate one phase of the electrical system. It is often used in low-load applications. It has a simple design and is easy to operate.
Gang-Operated Air Break Switch
A gang-operated air break switch is designed to control multiple conductors at once. These switches are mechanically linked. They open or close all conductors at the same time. Gang-operated switches are common in high-voltage networks. They isolate all three phases for safety and maintenance.
Gang switches are preferred in large distribution networks. They ensure that multiple lines are disconnected together. This reduces accident risks and makes maintenance more efficient.
Comparison of Single-Pole and Gang-Operated Switches
| Feature | Single-Pole Air Break Switch | Gang-Operated Air Break Switch |
|---|---|---|
| Number of Conductors | One | Multiple (usually three) |
| Application | Small-scale, single-phase systems | Large-scale, three-phase systems |
| Operation | Manual or automatic, for single lines | Mechanical linkage for simultaneous operation |
| Voltage Range | Typically lower than gang-operated | Higher voltage, up to 35 kV |
Working and construction of an air-break switch
Working of an Air Brake Switch
An air-break switch works by interrupting the current. It does this by separating the switch contacts in open air. When the switch is opened, the current stops. An arc forms between the contacts due to the high voltage. The surrounding air extinguishes the arc. It cools and insulates. The switch is operated manually or by a motor. It engages or disengages the contacts for maintenance or to isolate faults.
Construction of an Air-Break Switch
Insulated Support: The switch contacts are on insulated supports. They provide isolation and strength.
Contacts: The switch has a pair of contacts, usually copper. They close the circuit when engaged. These contacts are designed to minimize resistance and heat generation.
Arc Extinguishing System: To safely extinguish the arc when disconnecting, the switch may have an arc chute or similar device. It guides the arc and helps extinguish it quickly.
Operating Mechanism: The switch is operated by a lever or an automatic motor. This mechanism is responsible for moving the contacts to open or close the circuit.
Earthing Blades (optional): Some air-break switches have earthing blades. They can ground the disconnected line for safety during maintenance.
Horizontal vs. Vertical Installation
Air break switches can be installed in two orientations:
Horizontal Installation: Common in overhead lines, horizontal switches provide a clear visual confirmation of their status.
Vertical Installation: Vertical switches are often used in confined spaces or specific pole-mounted installations.
In either case, the switches can be mounted on the pole tops or in metal enclosures. It depends on the site’s requirements.
Applications of Air Break Switches
Air break switches are mainly used in distribution networks. They serve the following purposes:
Switching Points: They control the flow of electricity. They allow for maintenance by isolating sections of the network.
Fault Isolation: If there’s a fault, air break switches can isolate the affected network sections. This prevents further damage.
Capacitive and Excitation Currents: These switches can interrupt small currents in transmission lines. They help protect the system from overloading or damage.
Electrical Substations: Substations use air-break switches to isolate parts of the network for maintenance, repair, or testing.
Overhead Power Lines: These switches are on overhead lines. They disconnect and reconnect the lines for maintenance or if there is a fault.
In medium- and high-voltage systems, air-break switches control and isolate parts of the distribution networks.
Circuit Isolation: They isolate transformers, circuit breakers, and other equipment for safe repairs.
Protection Systems: Air-break switches protect equipment from overloads and faults. They do this by disconnecting circuits during switching operations.
Advantages of Air Break Switches
Simplicity: Air-break switches have a simple design. This makes them easy to use and maintain.
Cost-Effective: These switches are inexpensive compared to other high-voltage ones. So, they are a cost-effective solution.
High Voltage Use: Air-break switches can handle high voltages. So, they are suitable for outdoor substations and distribution systems.
Reliable Arc Extinguishing: The switch uses air to suppress arcs. So, it handles the arc without extra insulating materials. This reduces the risk of damage during operation.
Durability: Air-break switches are made of strong, weather-resistant materials. They are very durable and can withstand harsh conditions. So, they are ideal for outdoor use.
Manual and Automatic Operation: These switches can be operated manually or automatically. This allows flexibility based on the installation needs.
Easy Maintenance: The exposed parts are easier to inspect and maintain than those of enclosed switches.
Safety: Air-break switches can have earthing blades. This enhances safety during maintenance by ensuring the disconnected circuit is grounded.
Disadvantages of Air-Break Switches
Limited Arc Suppression: Air is worse than oil or SF6 gas at putting out arcs. This makes the switch unsuitable for very high-current interruptions.
Weather Exposure: The switch operates in open air. So, it is vulnerable to rain, dust, and wind. These can reduce its performance and reliability.
Manual Operation Risk: Manually operating the switch can be unsafe. It may cause electrical faults or arc flashes.
Noise and Light: Switching the device can create noise and a visible arc. This may disrupt or endanger some environments.
Maintenance Needs: The switch is easy to inspect. But it needs regular maintenance. It keeps the contacts clean and free of debris. They can corrode and affect performance.
Low Interruption Capacity: Air-break switches can’t interrupt heavy loads or faults. So, they can only be used for no-load or light-load switching.
Arc Re-Ignition Risk: A bad switch may re-ignite the arc if used under high loads. This could cause a failure.
Size: Air-break switches are large. They take up more space than other switches, which may limit compact installations.
Conclusion
Air break switches are vital in modern electrical systems. They provide reliable, low-cost solutions for switching and isolating high-voltage networks. These switches have a simple but effective design. They ensure safe operation, low maintenance, and flexible installation. Air break switches are a top choice for outdoor electrical systems worldwide. They are durable, easy to use, and versatile. They work in both single-pole and gang-operated configurations.
