Introduction
Synchronous motors with permanent magnets offer top-tier performance and dependability. Their construction integrates synchronous motor design with permanent magnets. This fusion yields superior performance across industries. PMSMs come in various types, each tailored for specific applications. In automotive, they power electric vehicles with remarkable torque. Industrial automation relies on their precise control capabilities. HVAC systems benefit from their energy-saving characteristics. Robotics harness their compact size and high power density. While PMSMs offer numerous advantages, they also have limitations. Cost and material availability pose challenges. Yet, their benefits often outweigh drawbacks. This guide explores PMSM technology, operation, and impact in depth.
What are Permanent Magnet Synchronous Motors?
Many types of AC motors exist. The Permanent Magnet Synchronous Motor is a type of Permanent Magnet moter is the most efficient. This design is innovative. It is one of many AC motor solutions. PMSMs harness magnetic fields for precise control and smooth operation. They run in sync with the applied AC frequency. Permanent magnets power these motors, creating a steady magnetic field. This design ensures consistent speed without relying on electromagnetic induction. This speed matches the AC supply frequency. It produces a sinusoidal back EMF. This ensures smooth operation in many applications.

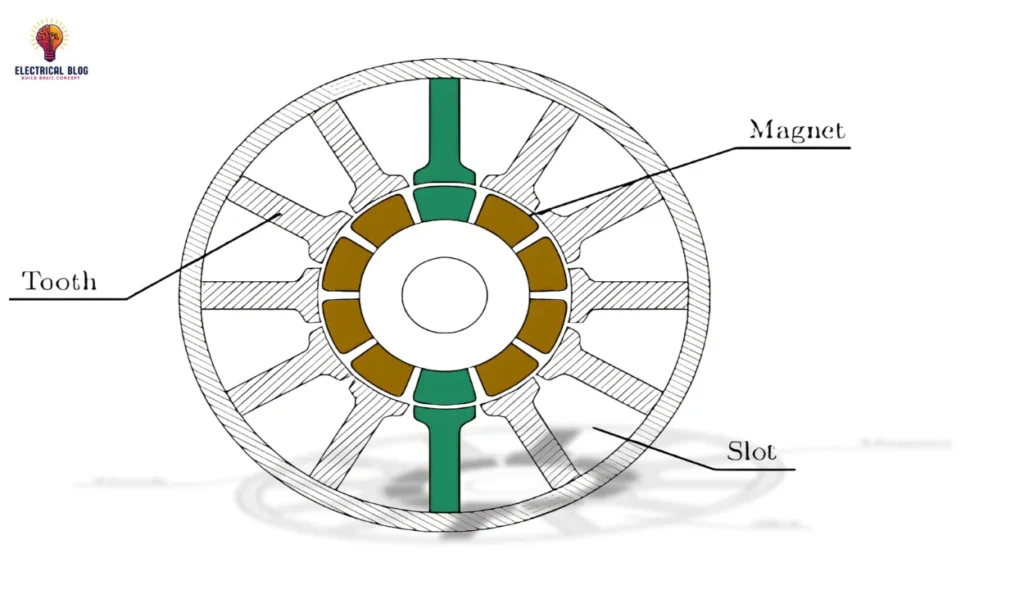

Construction of Permanent Magnet Synchronous Motors
Robust efficiency defines permanent magnet synchronous motors. Their design garners acclaim across industries. The key components include:
Rotor: Neodymium-Iron-Boron magnets, the powerhouse of PMSM rotors, create an unwavering magnetic field. These rare-earth dynamos drive the motor’s sync. Their strength anchors its performance. Compact yet mighty, they embody the essence of modern motor design. Their consistent output is vital for the PMSM’s efficiency. So, they are essential to this advanced motor design.
Stator: Laminated silicon steel sheets form the stator’s core, wrapped with windings. A rotating magnetic field emerges when 3-phase AC power flows through these coils. This field interacts with the rotor’s steady magnetic force, driving the motor’s motion. The stator’s dynamic magnetism and the rotor’s fixed field combine to rotate the motor.
Back EMF: As the rotor spins, it cuts the stator’s magnetic field. This creates a rhythmic back EMF wave. This undulating force, born of motion, pulses like an electric heartbeat. This ensures minimal torque ripple and smooth operation.
Principle of Operation
Rotating magnetic fields drive PMSMs. The stator, powered by 3-phase AC, generates this field. Permanent magnets on the rotor interact with it, producing torque. As the fields sync, the rotor turns. Brushless design boosts efficiency and longevity. This elegant interplay of magnetism yields a robust, reliable motor.
Types of Permanent Magnet Synchronous Motors
Rotor design dictates PMSM classification. Surface-mounted magnets offer simplicity and cost-effectiveness. Inset magnets boost mechanical strength. Interior magnets enhance flux concentration and provide reluctance torque. Spoke-type arrangements maximize torque density. Each configuration balances performance, efficiency, and manufacturing considerations for specific applications.

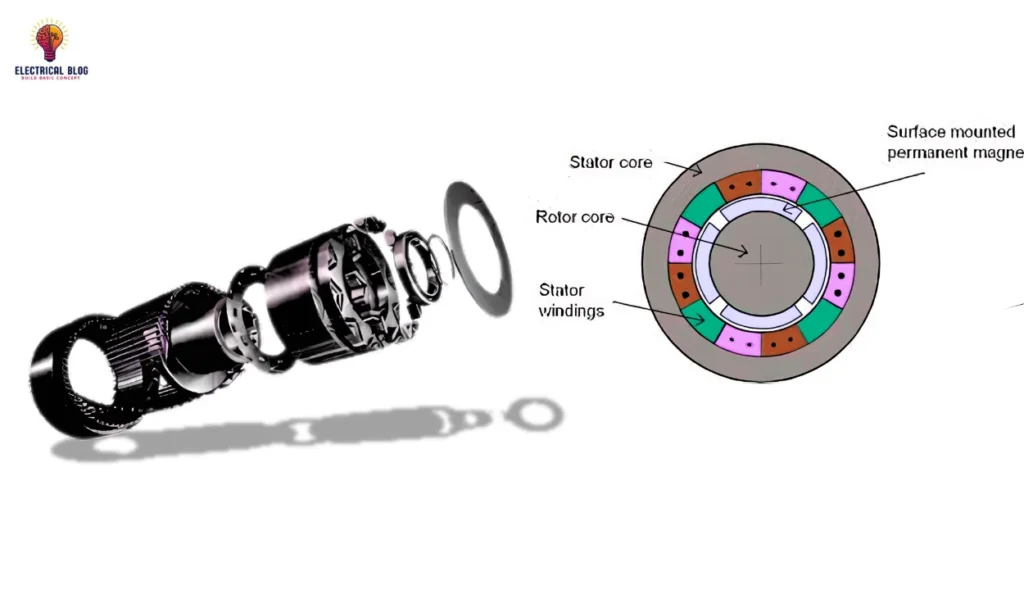

Surface Permanent Magnet Synchronous Motor (SPMSM)
Surface-mounted magnets adorn the rotor in SPMSM designs, defining their unique structure. This design is simpler and has a higher torque density. So, it suits applications needing rapid acceleration and deceleration.
Interior Permanent Magnet Synchronous Motor (IPMSM)
IPMSM features magnets embedded within the rotor’s core. This setup enhances the motor’s high-speed performance and strength. It is ideal for electric vehicles and industrial automation.
Variants Based on Stator Winding Design
Distributed Winding: This design spreads the windings across multiple stator slots. It results in a smoother back EMF and reduced harmonics.
Concentrated Winding: These windings are placed in fewer slots. This makes the motor more compact and efficient for some uses.
Advantages of Permanent Magnet Synchronous Motors
PMSMs have many advantages. They are a top choice for many industrial and commercial applications.
High Efficiency
PMSMs are very efficient, especially at high speeds. They have no brushes and use permanent magnets, which reduce losses.
Compact size and lightweight
PMSMs have a compact design and high power density. They can deliver a lot of power in a small size. This makes them ideal for space-constrained applications.
Excellent dynamic performance
PMSMs have rapid response times and great dynamic performance. So, they suit high-performance uses like robotics and precision machines.
Low Maintenance
The lack of brushes and the durability of the magnets means PMSMs need little maintenance. This lowers operational costs over time.
High Torque at Low Speeds
PMSMs can maintain full torque at low speeds. This makes them ideal for electric vehicles and servo drives.
Low Noise and Vibration
PMSMs run smoothly. They are quiet and have low vibrations. This approach boosts usability and reduces component stress. It helps users and extends hardware life.
Disadvantages of Permanent Magnet Synchronous Motors
High Initial Cost
Rare-earth permanent magnets and advanced manufacturing raise the costs of these motors. They are now more expensive than induction motors.
Complex Control Systems
PMSMs need complex control systems for their synchronous operation. This increases implementation costs and complexity.
Limited Starting Capability
PMSMs are not self-starting. They need an inverter or a starter to begin rotation. This adds to the system’s complexity.
Applications of Permanent Magnet Synchronous Motors
Fields like automotive and robotics rely heavily on PMSMs. These motors drive innovation across industries. Their efficiency boosts industrial growth. Reliability makes them vital across sectors. High performance drives widespread use. These motors support technological progress in various areas.
Electric Vehicles (EVs): PMSMs rule the EV world. Compact yet mighty, these motors deliver impressive torque. Their unrivaled efficiency makes them the go-to choice for electric vehicles. Automakers embrace PMSMs, revolutionizing drivetrains with powerful, space-saving technology. Compact and powerful, PMSMs drive the future of electric vehicles.
Robotics: PMSMs are ideal for robotic arms and automation systems. Their precise control and rapid response make them perfect for servos.
Aerospace: PMSMs are used in aerospace applications where weight and efficiency are critical. An example is aircraft control systems.
Industrial Automation: PMSMs power machine tools and automation systems. They need high performance, accurate positioning, and smooth operation.
HVAC Systems: PMSMs are used in HVAC compressors and fans. Their efficiency and low noise are highly valued.
Conclusion
Permanent Magnet Synchronous Motors are reliable, efficient, and high-performing. These advanced devices showcase engineering skill, providing steady power with little energy loss. Their strong design makes them ideal for tough jobs in any industry. They will last a long time. Among electric motors, they reign supreme. Unrivaled strengths distinguish them from competitors. Excellence drives these top performers to the top. They are ideal for tough tasks. Their unmatched capabilities shine in high-stakes situations. Their uses, from electric vehicles to industrial automation, show their value in engineering. By knowing the types, construction, and operation of PMSMs, businesses and engineers can choose the right motor.
