Introduction to the 1900 Electrical Box
Overview of the 1900 Electrical Box:

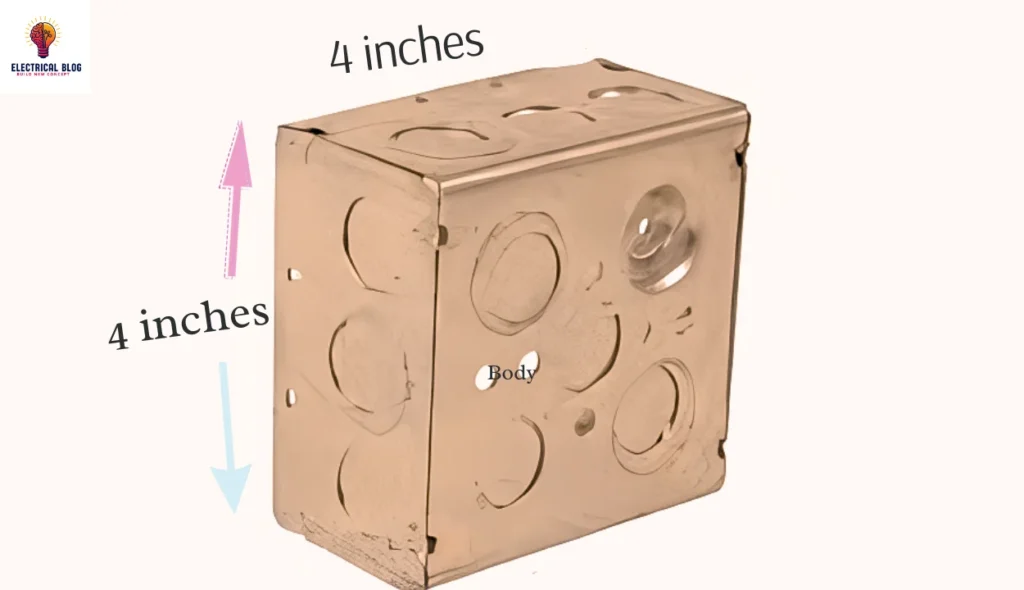

A 1900 electrical box, or 4×4 box, measures 4 inches by 4 inches. It’s common in homes and businesses. It’s usually made of steel. It’s vital for protecting electrical connections for outlets, switches, and lights. Its robust design keeps wiring safe, minimizing electrical risks.
Purpose of the Article:
Knowing the 1900 electrical box is key for electricians, contractors, and DIY fans. This article explains what a 1900 electrical box is, its types, and how to install and maintain it. Mastering this box helps professionals ensure safer, more efficient setups. Meanwhile, it gives DIYers the confidence to tackle home electrical projects.
Who Should Read This:
This article targets professional electricians, apprentices, and DIY homeowners. Electricians can refresh their knowledge of the NEC code. Meanwhile, DIY enthusiasts can learn the basics of installation. The guide offers valuable insights and practical tips.
What is a 1900 electrical box?

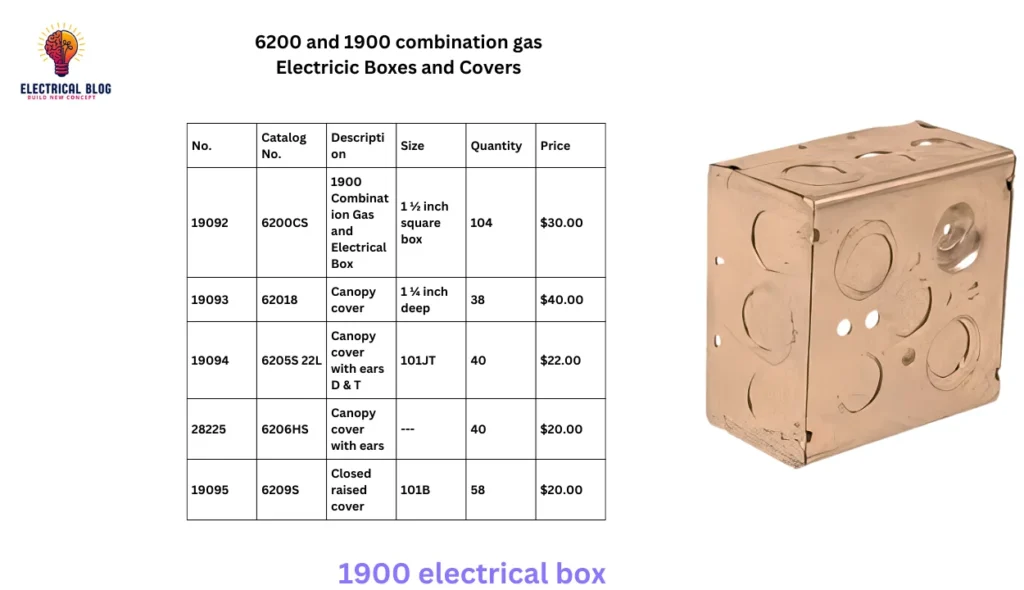

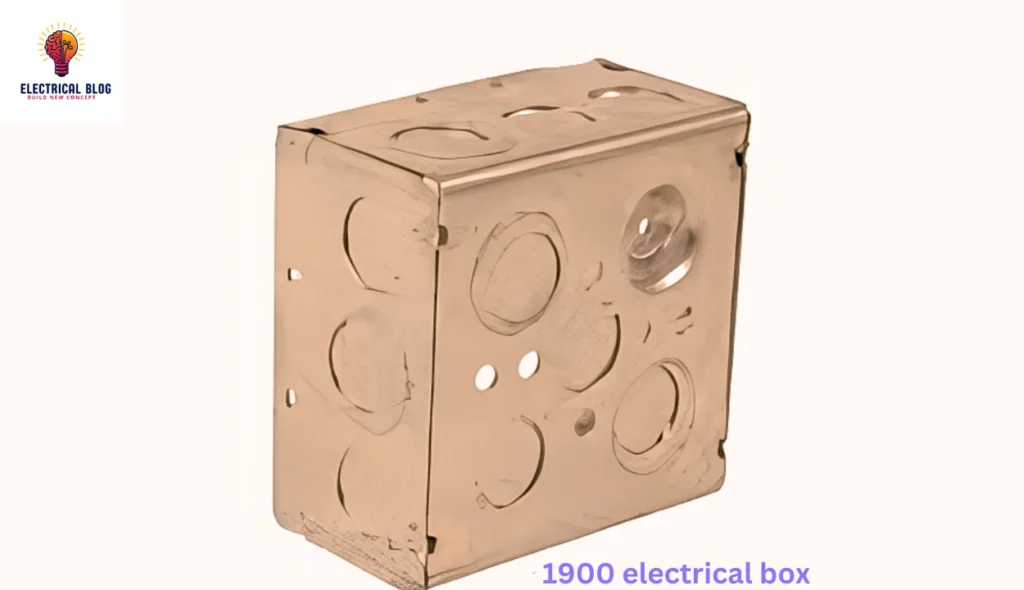

The 1900 electrical box is a common type of metal box. It measures 4 inches by 4 inches, so it’s often called a 4×4 box. This square electrical box is made mainly of steel. Aluminum versions are also available. They offer a durable, reliable solution for various electrical installations. Its design secures electrical connections. It protects and organizes wiring in residential and commercial applications.
1900 Electrical Box Specifications
Dimensions and Capacity
The 1900 box comes in two variants for different wiring needs.
- Standard 1900 Electrical Box: This version has dimensions of 4 inches by 4 inches with a depth of 1.5 inches. It can hold up to twelve 10 AWG wires. So, it suits moderate wiring tasks.
- Deep 1900 Electrical Box: It measures 4 by 4 inches and is 2.125 inches deep. The deep variant has more space for bulkier cables. It is more flexible for complex wiring.
These boxes are constructed from welded steel, ensuring robustness and longevity. They have slotted screw heads for easy installation. They also have multiple knockouts on the bottom and sides for 1.5-inch conduit sizes. The boxes can be used in circuits with voltages up to 600 volts. They are safe and meet industry standards, so no bonding jumper is needed.
Design and Features
The design of the 1900 box is both functional and innovative. A key feature is its patented design. It allows easy cable removal and connector reuse. This cuts the need for replacement parts during maintenance or upgrades. It saves costs and improves efficiency. Also, the knockouts are placed to support various conduit setups. This enhances the box’s adaptability in different installation environments.
Components of a 1900 electrical box
Knockouts:
Knockouts are pre-punched holes in a 1900 electrical box. These knockouts are easy to remove for adding electrical conduit or cables. They vary in size, usually from an inch to an inch, to fit different wiring needs. Simply use a screwdriver or knockout tool to punch out the needed size for a clean opening. This keeps the wires secure and organized. It also protects the system in the metal box.
Grounding Provisions:
Proper grounding is vital for electrical safety and NEC compliance. The 1900 box usually has a grounding screw or clip. Typically, the screw is inside the box. It securely attaches the ground wire, directing stray current safely. This action protects the system and prevents shocks and fires. Hence, grounding is essential in installation.

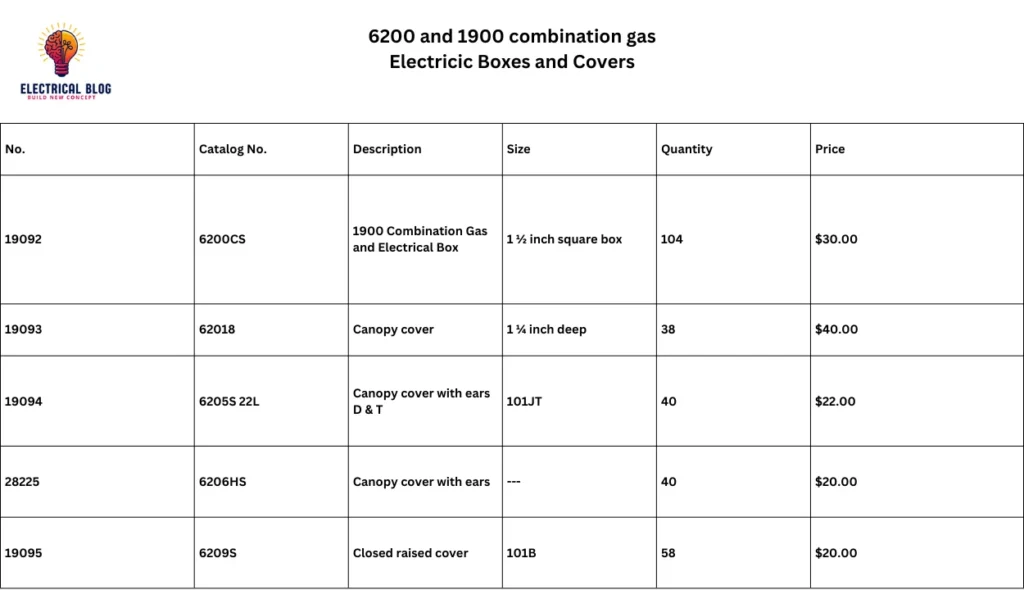

Covers and Accessories:
The 1900 box works with various covers and accessories. This makes it adaptable for different setups. Flat covers suit simple junction boxes. Raised covers are for devices like outlets or switches. Mud rings give a neat finish when the box is behind drywall or plaster. Mounting brackets secure the box to surfaces. Clamps hold cables or conduit. These components ensure safe, compliant installations and offer flexibility.
Historical Background: The Origin of the 1900 Electrical Box
The name “1900 electrical box” might suggest a link to size or capacity, but that’s a misconception. It actually comes from a part number given by the Bossert Company nearly a century ago. This fact showcases the 1900 box’s long-standing reliability and popularity in electrical engineering. It also highlights its continued importance in today’s installations.
Types of 1900 electrical boxes
Regular 1900 electrical box
The regular version of the 1900 Electrical Box is 4×4 inches with a depth of 1.5 inches. This version is ideal for basic electrical setups with minimal wiring. It is commonly used for standard light switches, outlets, and small lights.
Deep 1900 electrical boxes
The deep variant of the 1900 Electrical Box retains the same 4×4-inch size but is 2.125 inches deep. This extra depth is perfect for more wiring or larger components. It’s ideal for systems with many cables, like in industrial or complex home setups.
Knockouts and Conduit Sizes
Both versions have knockouts for 1.5-inch conduits on the bottom and sides. These allow flexible wiring, making the 1900 electrical box suitable for different installations.
Applications of the 1900 Electrical Box
The 1900 electrical box is famous for its versatility. It suits many uses in homes and businesses. Below are some of the most common uses:
High-Volume Wiring Installations
The 1900 box’s large design is perfect for many wires or cables. It’s perfect for industrial or commercial buildings that need to safely store bulky wiring.
Flexible Armored Cable Installations
The deep variant of the 1900 box is made for Flex, MC, MCI, AC, and HCF cables. These cables are vital in places that need both durability and flexibility, like healthcare facilities and industries.
Lighting fixtures, switches and receptacles
The 1900 electrical box is often installed in walls or ceilings. It is used for lighting fixtures, switches, or outlets. Its strong build and ample space make it ideal for these uses. It ensures secure and reliable connections.
High-Voltage Circuit Applications
The 1900 electrical box is built to last and can handle circuits up to 600 volts without a bonding jumper. Thus, it’s ideal for high-voltage uses. This includes above-ground and below-ground circuits. They must be safe and meet strict electrical codes.
Benefits of Using a 1900 Electrical Box
Durability and Longevity
The 1900 electrical box, made of welded steel, is highly durable. This makes it perfect for long-term use. It resists corrosion and wear. So, it can endure harsh conditions. This prolongs the electrical system’s life.
Versatility in Application
The 1900 electrical box suits various wiring and cable types. Its flexibility makes it popular among electricians and engineers. They use it for projects ranging from homes to large buildings.
Ease of installation and maintenance
The 1900 electrical box is designed for easy use. It has slotted screw heads and simple knockouts. These features make installation, maintenance, and upgrades easier. As a result, they reduce downtime and labor costs.
Compliance with Electrical Codes
The 1900 electrical box meets all safety and performance codes. It works without a bonding jumper in circuits up to 600 volts. This ensures it meets industry standards, giving installers and users peace of mind.
Conclusion
The 1900 electrical box is vital in electrical engineering. It is durable, versatile, and easy to install. Few other products match its qualities. The 1900 box is perfect for high-volume wiring, flexible armored cable, or high-voltage circuits. It reliably meets the demands of modern electrical systems.
